8 X 10 Inch Manual Curve Screen Printing Machine, with Push and Traction System, with 3 Roll Sets and A Maximum Diameter of 170 Mm, for Cylindrical and Conical Products

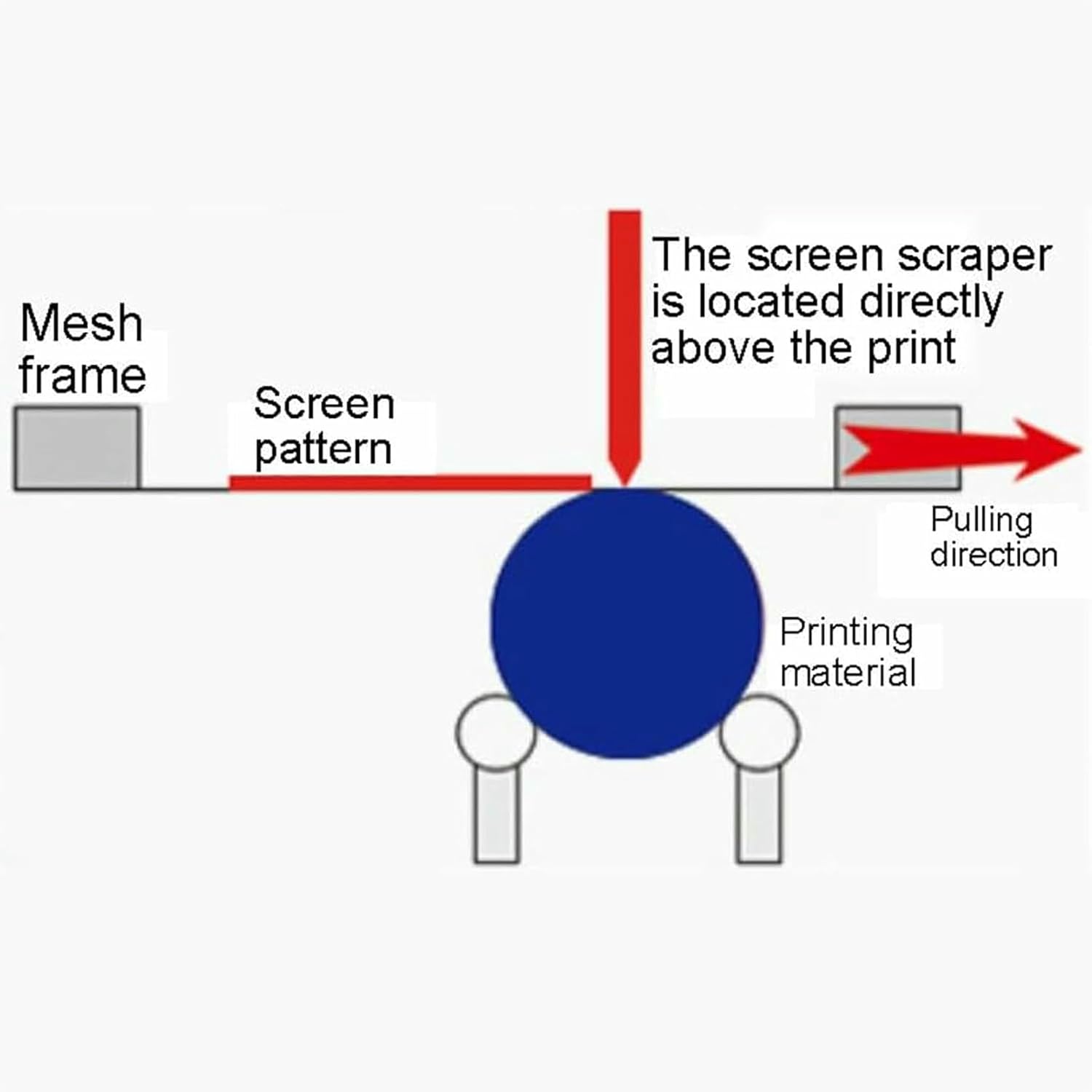

The machine adjusts and positions the height of the rear main frame. The rear main beam is adjusted vertically according to the height of the substrate by the post screw. You can print cylindrical and conical products with a diameter of 170 mm.Specifications:Product structure: Front and rear push-pull typeMaximum image and text area: 200 x 250 mmApplicable screen: outer diameter 280 x 450 mmMaximum Screen Thickness: 40 mmVertical adjustment range: 160 mmMaximum cylinder/cone diameter: 170 mmScreen printing machine size: 650 x 320 x 320 mmProducts included:1 screen printing machine

• (Various Applications) The screen printing machine kit is designed for various cylindrical and conical products, such as bottles, small cylindrical glasses, cosmetic bottles, thermal glasses, etc.
• (Material) Thanks to the use of a tough steel plate, the screen printing machine is more stable and robust. The humanized design of the non-slip handle makes the entire printing process comfortable and safe.

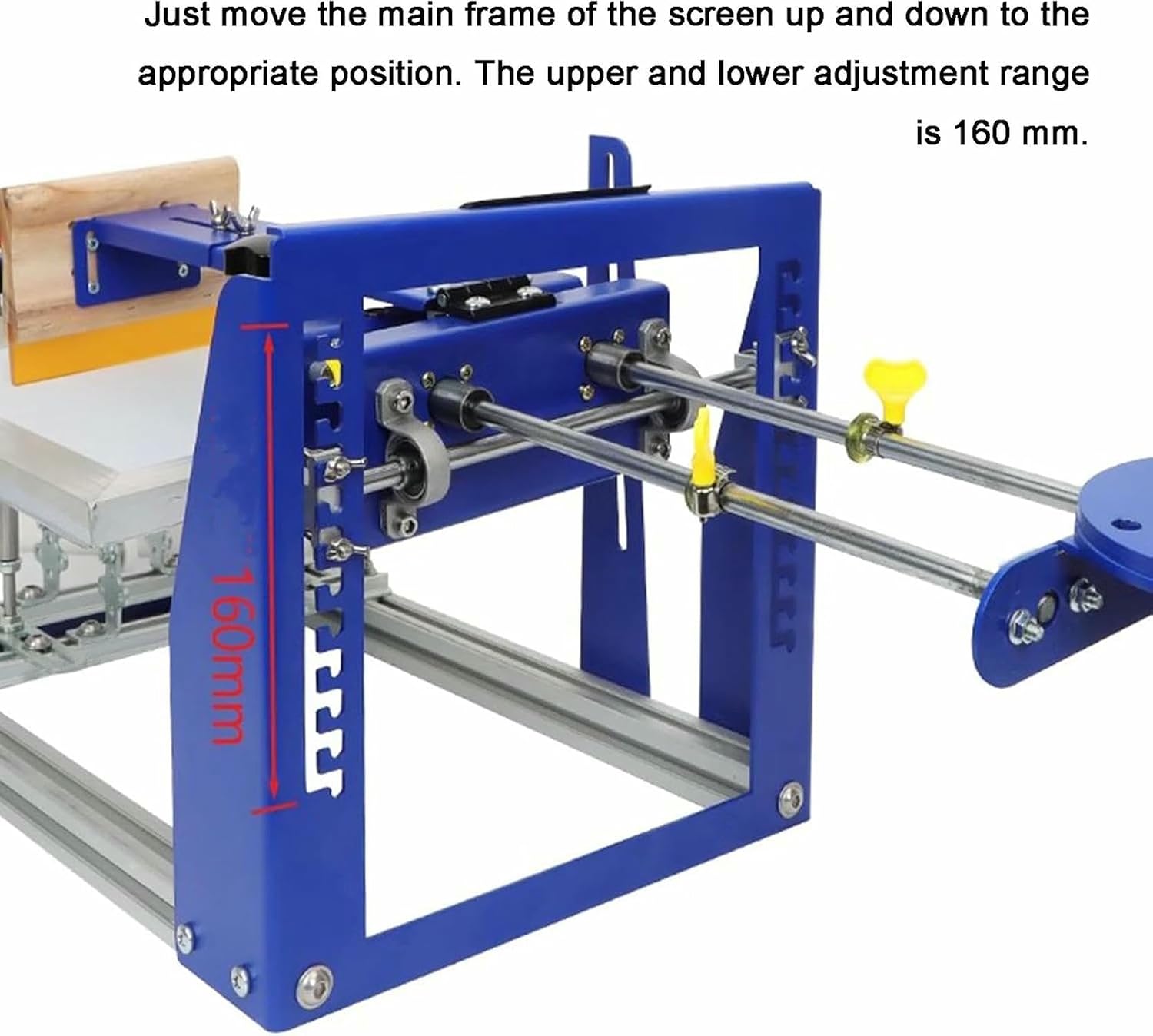

• Height Adjustment: Depending on the height of the motherboard, adjust the main screen frame and move it up and down to the right position. The upper and lower adjustment range is 160 mm.
• (3 sets of rollers) Three sets of rollers are used to place the substrate, which can be replaced according to the needs of the product. Both the main frame and the sub-frame can be equipped with three types of rollers.
• (Easy operation) The push-pull handle design makes operation easier, allowing even inexperienced operators to quickly start screen printing, thus improving work efficiency.
